Pure Sine Ware High Frequency inverter 220V DC To 220V AC 2KVA/1.6KW Parallel Power Inverter

reliable electric inverter reliable electric 8000 watt inverte

Veja mais fotos

Descrição:

The Pure sine inverter can provide stable and Pure sine (AC) power; Provides an optional output voltage and frequency source for the where needs of sensitive equipment that must be operated in a commercial location.

Modelo：

220V DC To 220V AC 2KVA

- +

Adicione à consulta 0

- +

Adicione à consulta 0

- +

Adicione à consulta 0

Envie e -mail para nós Contate agora

Detalhes do produto

Parâmetros

Inquérito agora

Pure Sine Ware High Frequency inverter 220V DC To 220V AC 2KVA/1.6KW Parallel Power Inverter

Parallel inverter power supply

BWT-DT2000 parallel inverter specially designed to the application of reliability and cost-effective & high safety power supply. It uses full (electrical) isolation inverters technology to convert direct current into high quality pure sinusoidal alternating current (AC),Rack mount type easy install in the cabinet.

BWT-DT2000 series parallel inverter power supply design is perfect, allowing to cut off DC in the state of start, automatically switch to power bypass, do not affect the load of power supply, convenient to battery maintenance and replacement;

Technical characteristics

◆ Complete isolation type Inverter technology, outputs pure sine alternating current (AC).

◆ The inverter unit adopts advanced high frequency SPWM and unipolar frequency doubling technology, small volume and pure waveform.

◆ Strong overload capacity, can support full load start-up, with bypass switch, overload can be switched to bypass power supply

◆ It has the protection functions of input over-voltage, under-voltage, output over-voltage, under-voltage, over-temperature, short circuit, etc..

◆ The front panel is configuration with a monitoring screen, and the status information can be checking

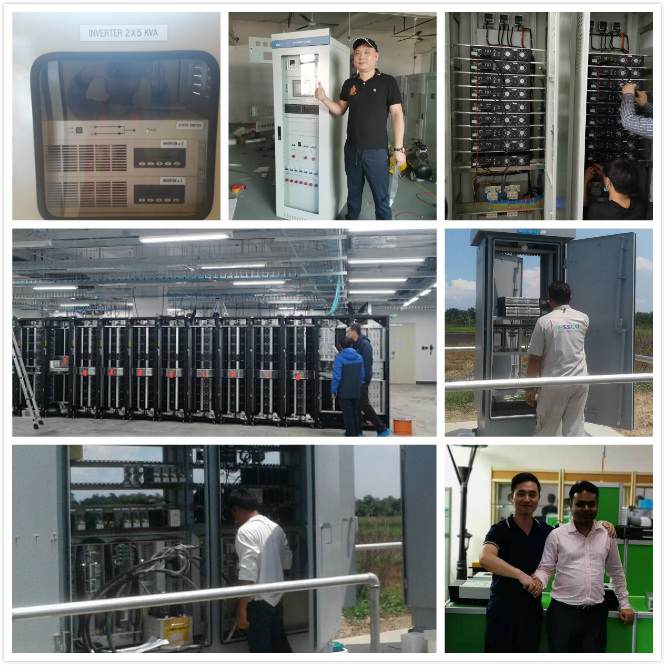

Case show:

Tags：

19" Rack Mount 2U Parallel Power Inverter 110/220V DC To 220V AC 3KVA Parallel inverter

N+1 parallel redundant 1u inverter 48VDC 220VAC Pure Sine inverter ac units 1-3kva inverter

Envie sua mensagem para nós:

Recomendação do produto

Product form	Rated power	1KVA	2KVA	3KVA	5KVA	6KVA	8KVA	10KVA
	Dimensions （Width×height×depth）(mm)	19"2U			19"2U		19"3U
		490×88×385			490×88×392		540×132×405
Input parameter	DC input voltage	110V/220VDC
	DC input range	92～142VDC/185～285VDC
	Bypass input range	176～264VAC
	Bypass switching time	Electronic type＜5ms（external） Mechanical type＜20ms					Electronic type＜5ms（external）Mechanical type＜30ms
Ac output	Rated output voltage	220VAC
	Rated output frequency	50Hz
	Load regulation	＜1%
	Frequency accuracy	＜0.1%
	peak factor	3：1
	Waveform distortion	Resistance full load＜3%，nonlinear full load＜5%
	Dynamic response	Voltage transient range＜3%，transient response recovery time≤60ms（load from 0 to 100）
	Parallel uneven flow	＜3% rated current RMS
	Overload capacity	Load current ＜105%, continuous work Load current 105～125%, continuous work 10min shutdown Load current 125～150%，continuous work after 1min shutdown Load current＞150%，after 20ms shutdown
	Protection function	Input connection protection, input under voltage and over-voltage protection, output overload protection, output short circuit protection, over temperature protection
Communication	Communication interface	RS485
Work environment	Força de isolamento	2KVac，1min
	Barulho (1 m)	＜45dB
	Operating ambient temperature	－10～50℃
	Transport and storage temperature	－40～70℃
	Relative humidity	0～90%, sem condensação
	Relative altitude (M)	≤3000m，1500～3000m, 1% decrease in output for every 100 m increase
